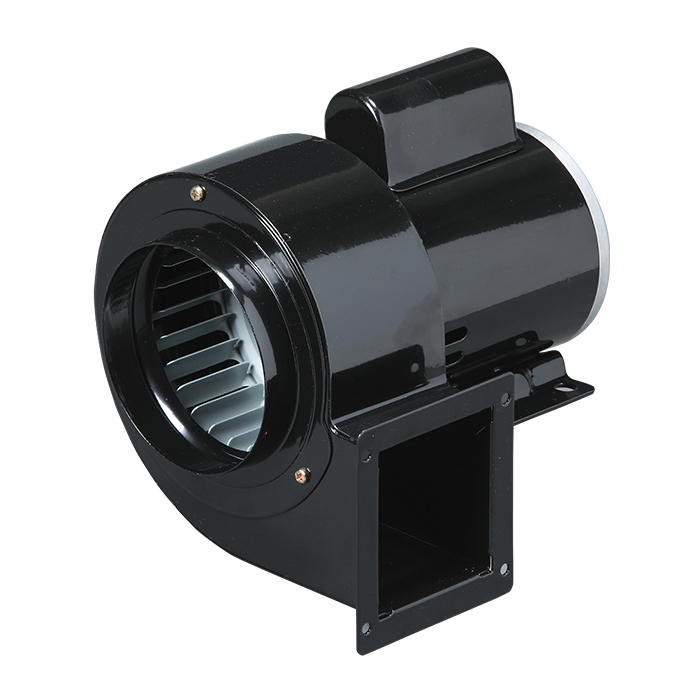

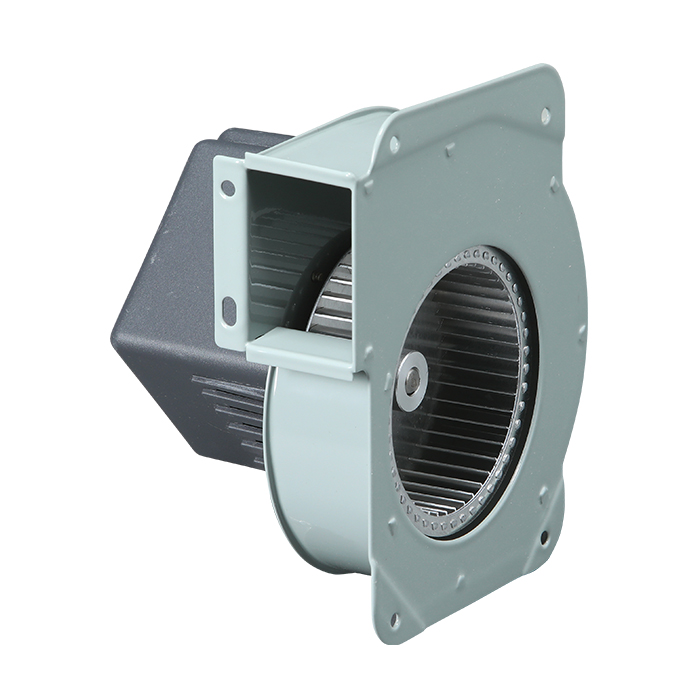

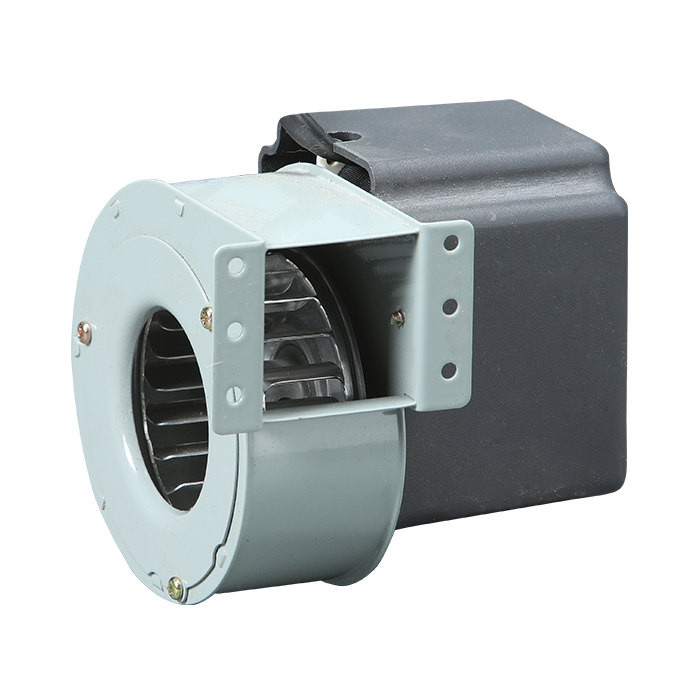

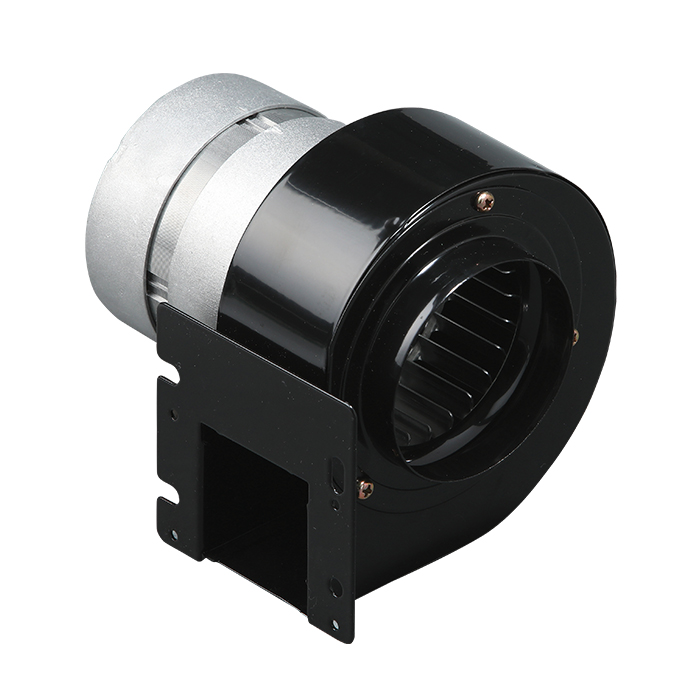

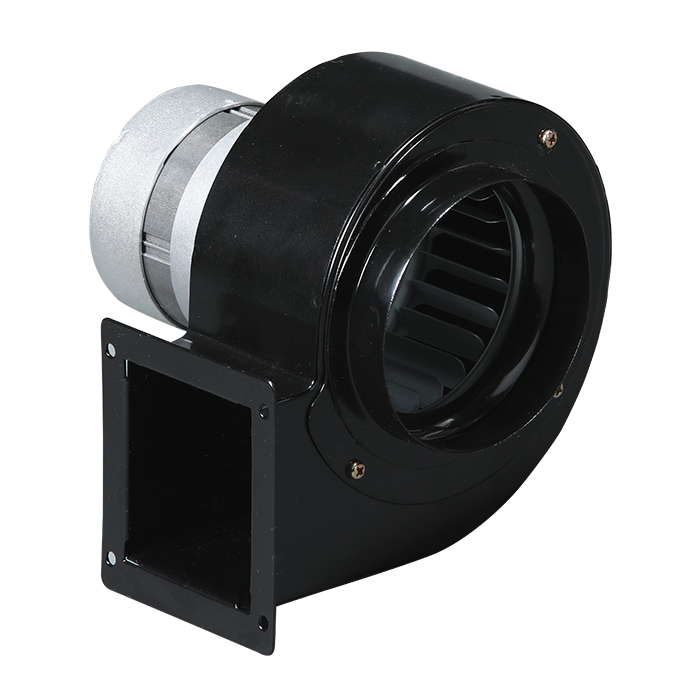

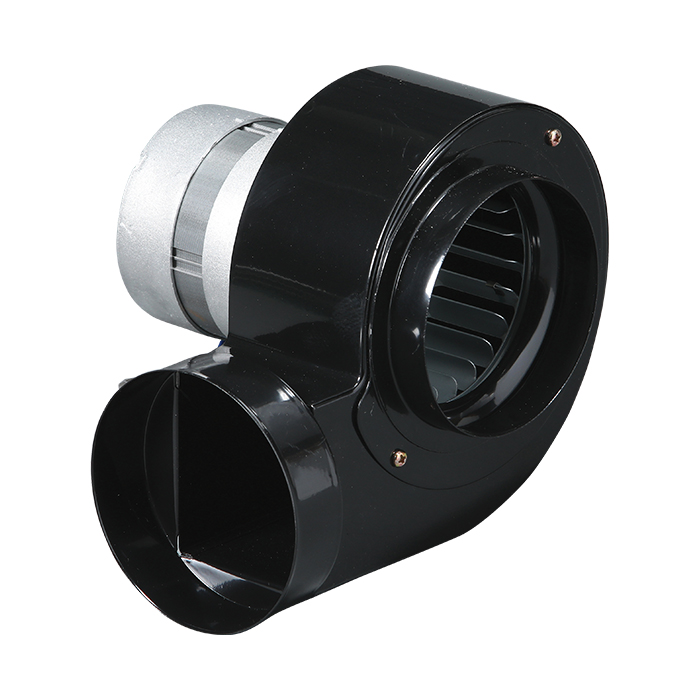

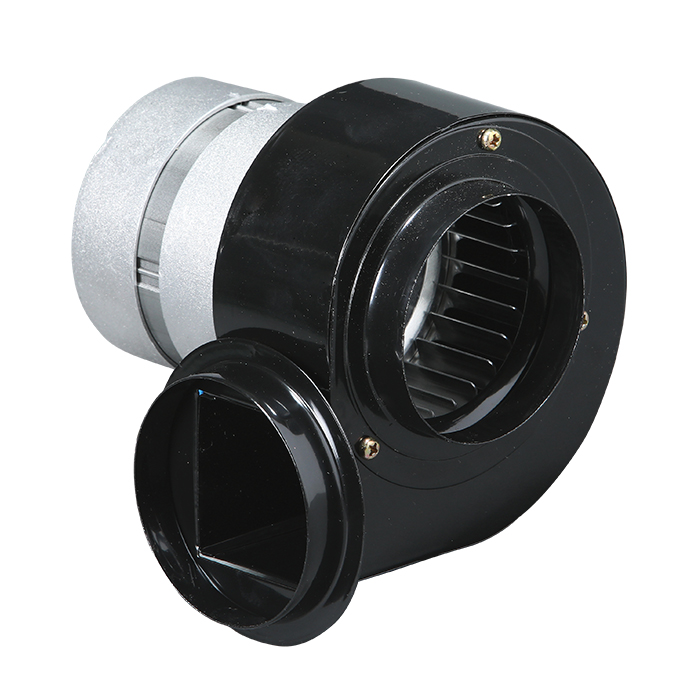

Flange-type Blower
Flange-type Blower
| Feature |
|
| Use |
|
Specification
| Model No. | Impeller size (mm) |
Max Air Volume (㎥/h) |
Static Pressure (mmAq) |
Phase (∮) |
Volt (V) |
Poles (P) |
Input (W) |
Power Consumption (W) |
Weight (kg) |
Plan (PDF) |
Test Report (PDF) |
|---|---|---|---|---|---|---|---|---|---|---|---|
| DR-E70SA(사각형) | Ø72X30 | 72 | 15 | 1 | 220 | 2 | 20 | 23 | 0.85 |  |
|
| DR-E75SA(사각형) | Ø85X30 | 84 | 18 | 24 | 27 | 0.9 | |||||
| DR-F95SA(사각형) | Ø85X40 | 162 | 27 | 40 | 32 | 1.3 | |||||
| DR-F95SA(원형) | |||||||||||
| DR-F105SA(사각형) | Ø105X50 | 240 | 30 | 60 | 65 | 2.1 | |||||
| DR-F115SA(원형) | |||||||||||
| DR-F118SA(사각형) | Ø118X50 | 320 | 35 | 100 | 23 | 3.3 | |||||
| DR-F118SA(원형) | |||||||||||
| DR-F150SA(사각형) | Ø118X60 | 540 | 43 | 209 | 32 | 6.4 | |||||
| DR-F200SA(사각형) | Ø150X80 | 1,020 | 75 | 485 | 60 | 9 |
