Double Suction Fan

产品介绍

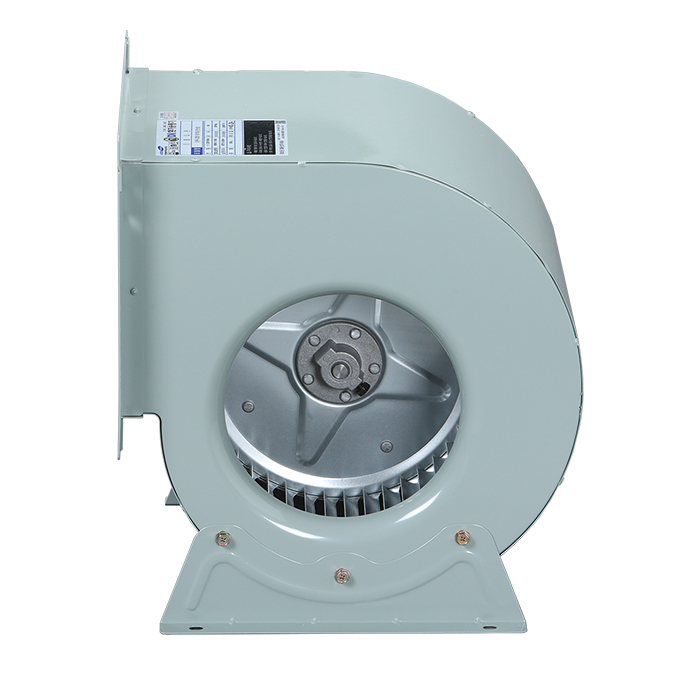

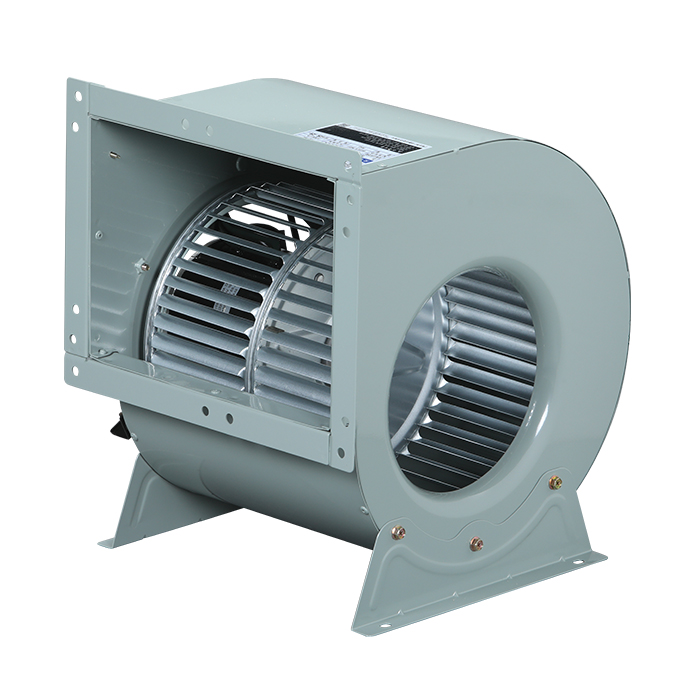

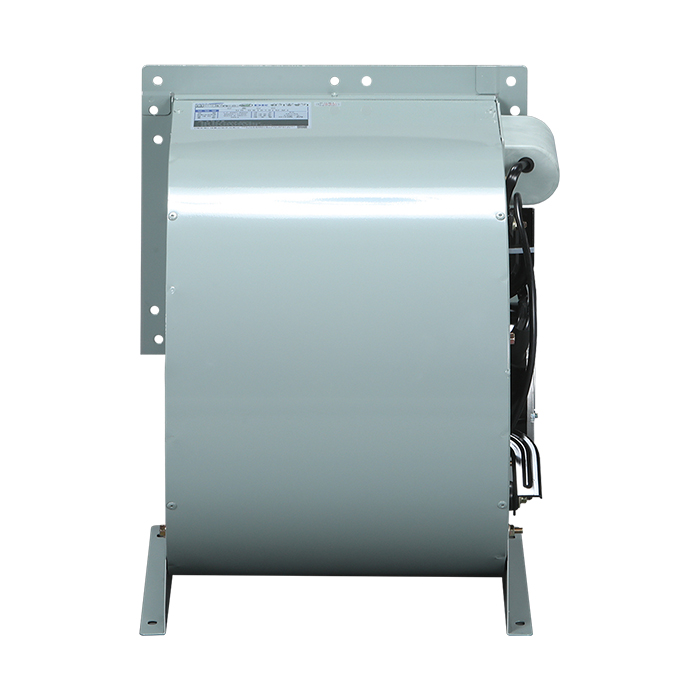

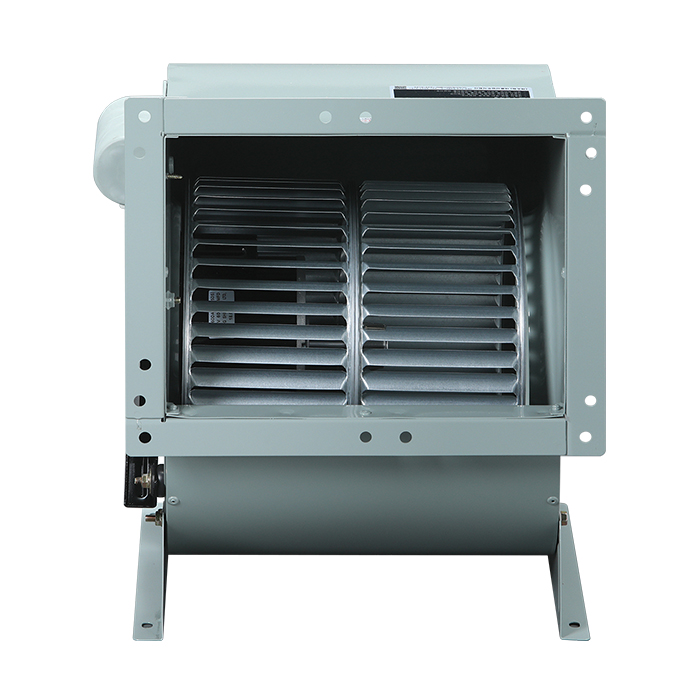

Double Suction Fan

Feature

Realization of low noise by application of double-suction type Sirocco blade
Advanced durability and corrosion resistance by application of special painting on the front

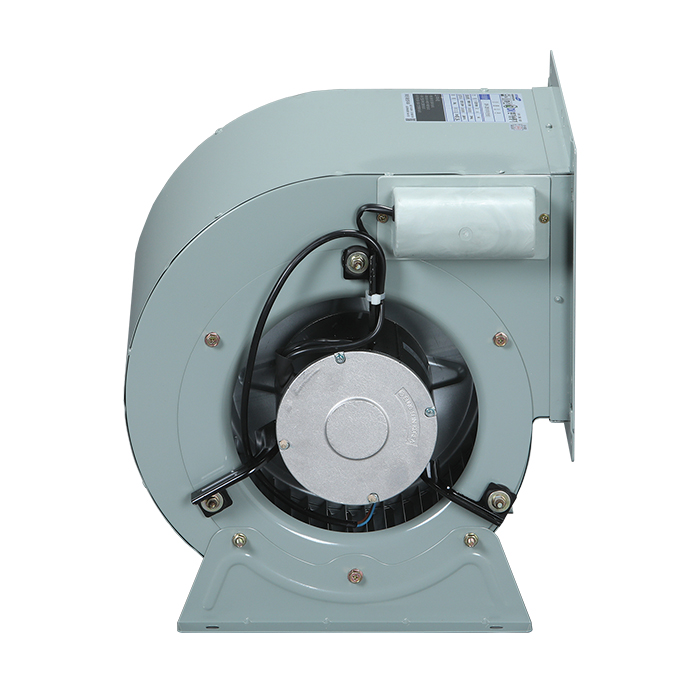

Quick and simple process of repair and cleaning through only one-off removal of integrated structure of motor and impeller

※ SUS order production possible (excluding wings)

Use	Air-conditioning, thermo-hygrostats, heaters, heated and cool air blowing, and ventilation system

Specification

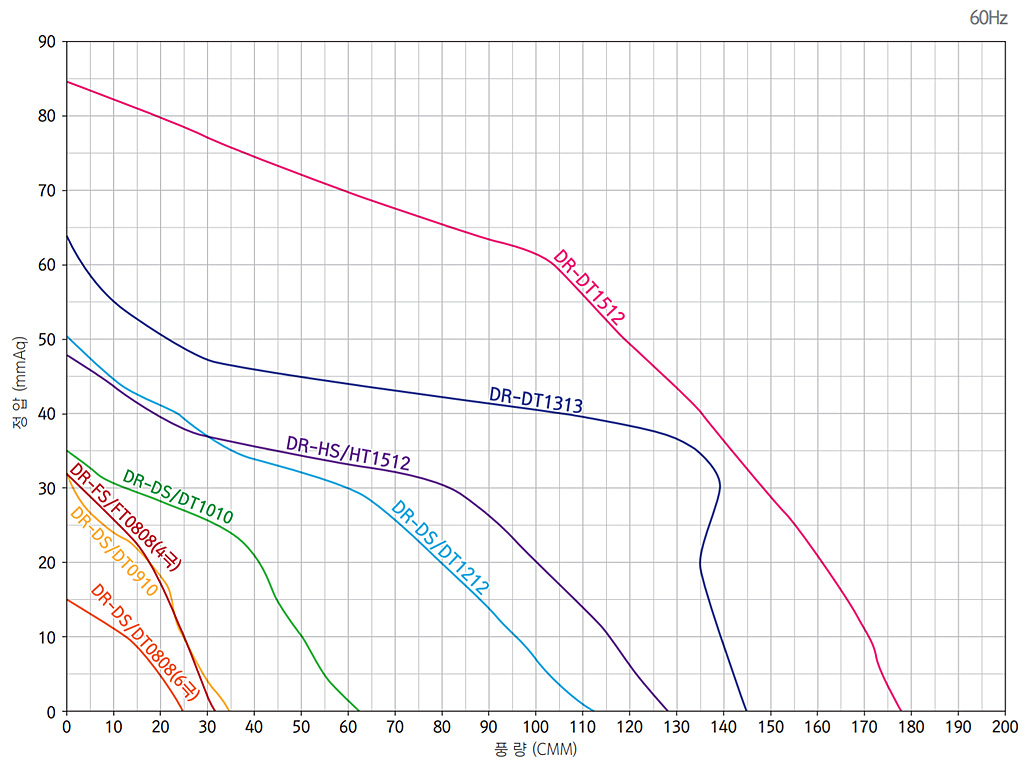

Model No.	Impeller size(mm)	Max Air Volume (㎥/h)	Static Pressure (mmAq)	Phase (∮)	Volt (V)	Poles (P)	Input (W)	Power Consumption (W)	Ampere (A)	Weight (kg)	Plan (PDF)	Test Report (PDF)
DR-FS0808(4극)	Ø200X210	1,960	32	1	220	4	420	456	2.1	14
DR-FT0808(4극)		1,960	32	3	220/380	4	420	331	1.6/0.9
DR-DS0808(6극)		1,500	15	1	220	6	250	206	1
DR-DT0808(6극)		1,500	15	3	220/380		250	189	1.05/0.6
DR-DS0910	Ø230X260	2,100	32	1	220		450	487	2.2	16
DR-DT0910	Ø230X260	2,100	32	3	220/380		450	298	1.4/0.8	16
DR-DS1010	Ø270X260	3,800	35	1	220		900	815	3.9	20
DR-DT1010	Ø270X260	3,800	35	3	220/380		900	721	3.2/2.0	20
DR-DS1212	Ø300X300	6,800	50	1	220		1,100	1,667	8	30
DR-DT1212	Ø300X300	6,800	50	3	220/380		1,100	1,280	6/3.4	30
DR-DT1313	Ø330X330	8,700	64	3	220/380		2,200	3,500	11.4/6.4	31
DR-HS1512	Ø380X300	7,600	47	1	220	8	1,500	1,768	8.9	45
DR-HT1512		7,600	47	3	220/380	8	1,500	1,200	5.6/3.2
DR-DT1512		10,748	85	3	220/380	6	3,500	3,263	15.4/8.8
