Duct type In-line Fan

Products

Duct type In-line Fan

Feature
  • Minimized noise and vibration by application of optimal design of integrated case
  • Low noise (noise controller is attachable)
  • Maximized efficiency
  • Electro deposition coating on blade for greater corrosion resistance

※ SUS order production possible

Use
  • HVAC system for buildings, apartments, underground shopping centers, factories, warehouses, etc
  • Ventilation, air-conditioning, heated and cool air blowing and air supply and exhaust system
  • Exhaust and ventilation system for mini-environments

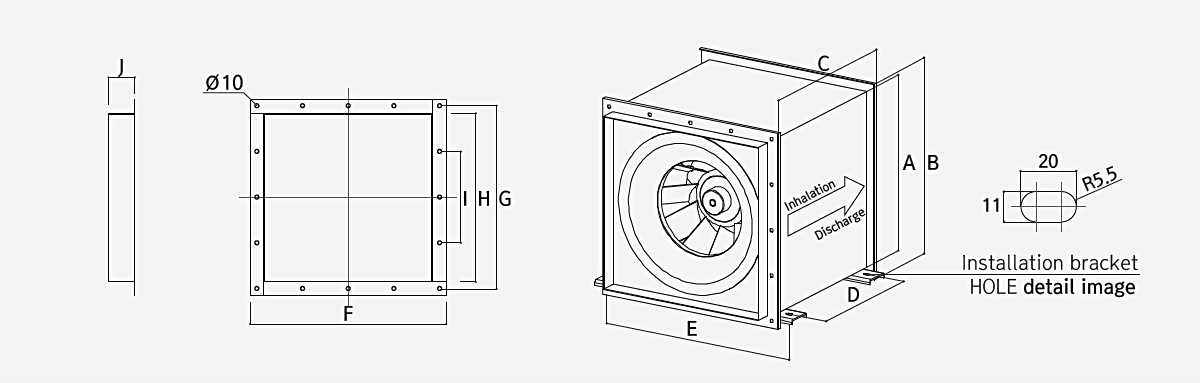

Drawing

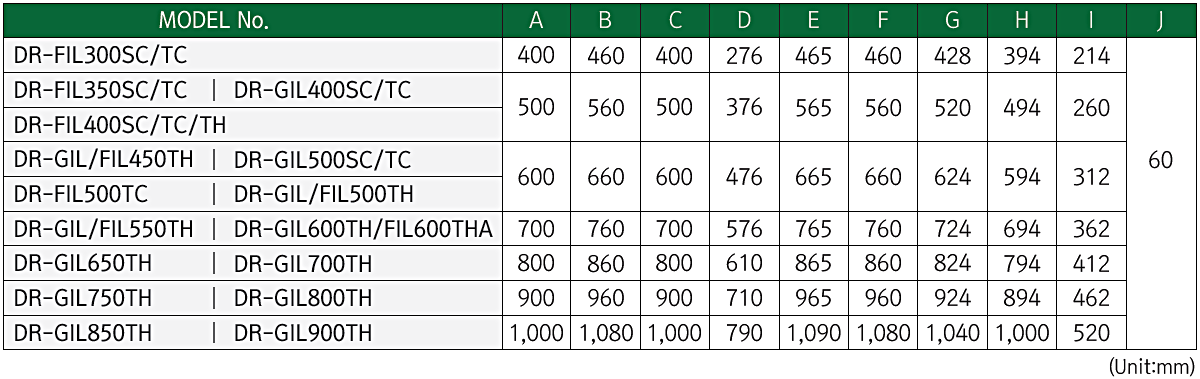

Dimension

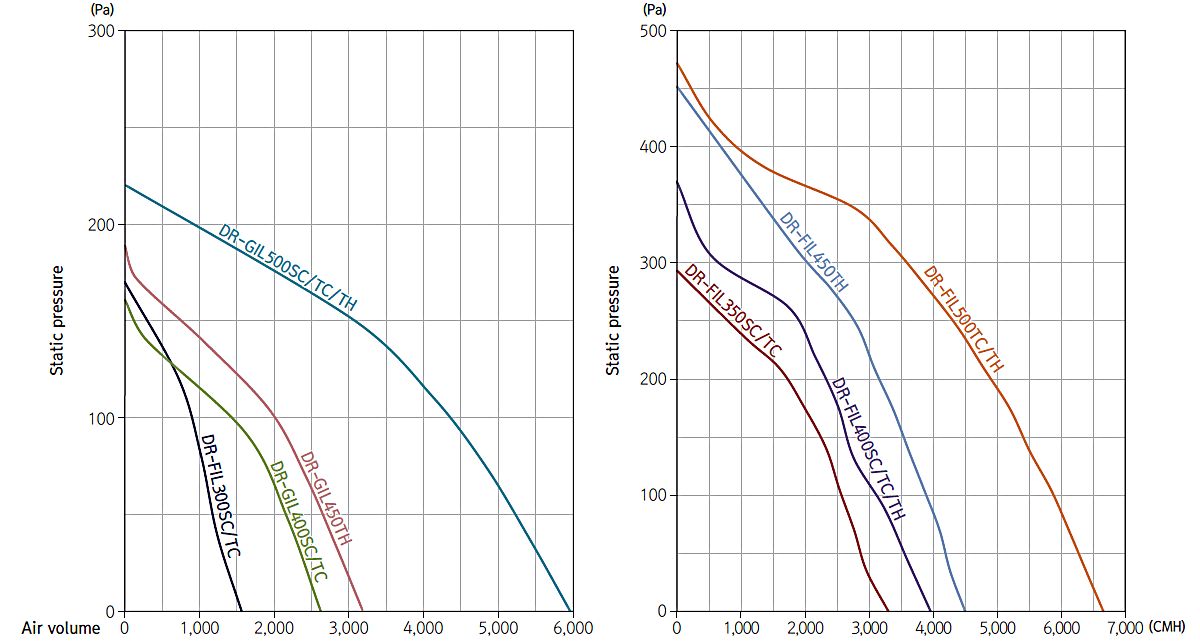

Performance curve

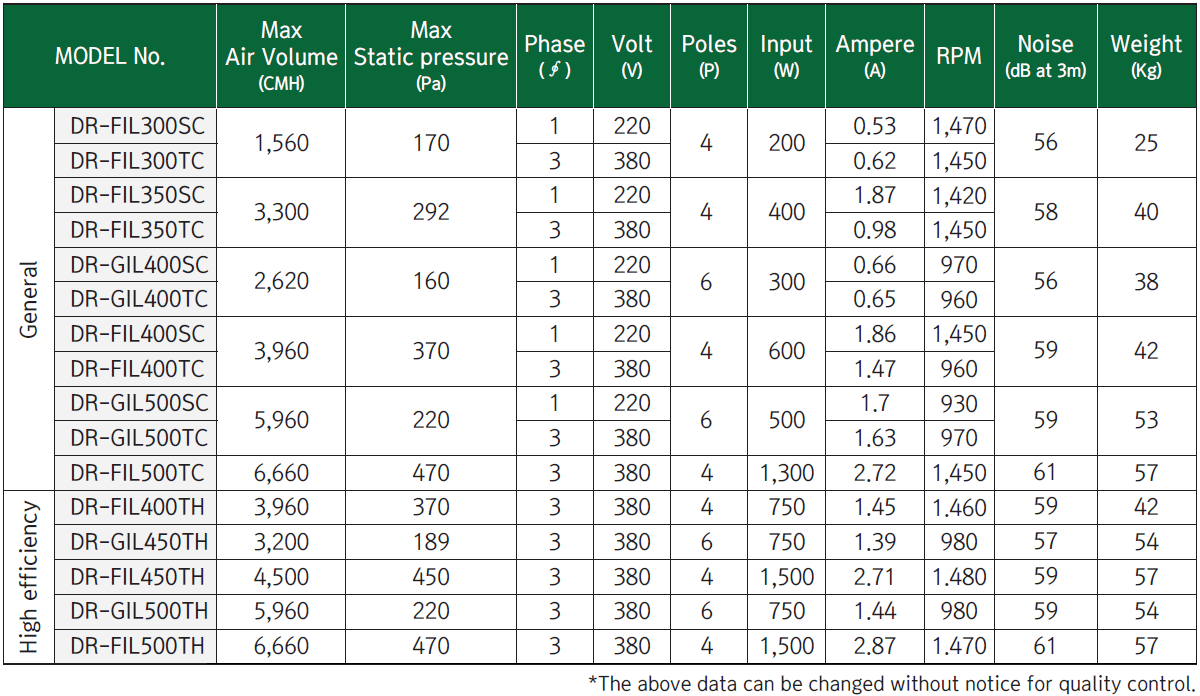

Specification
