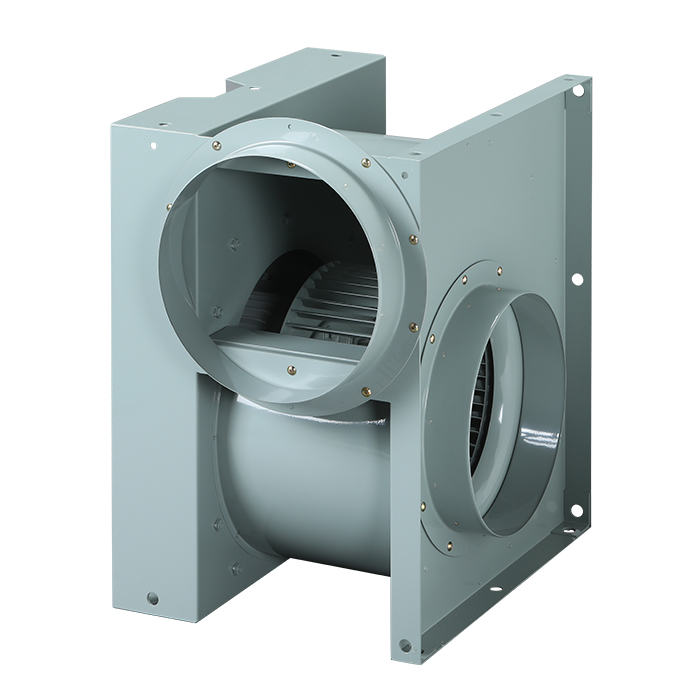

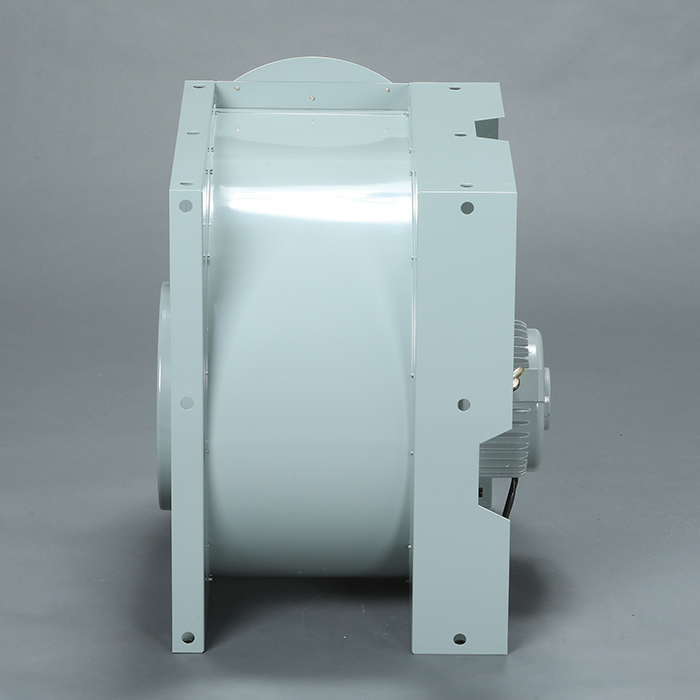

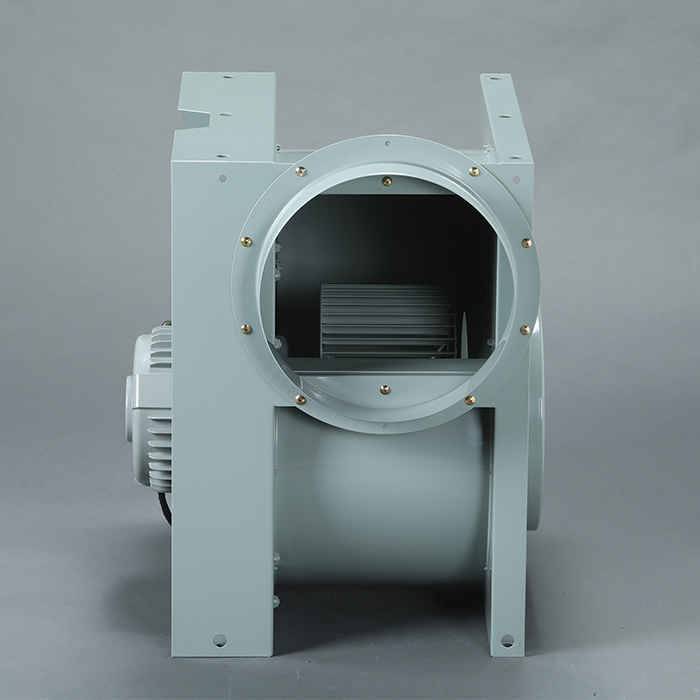

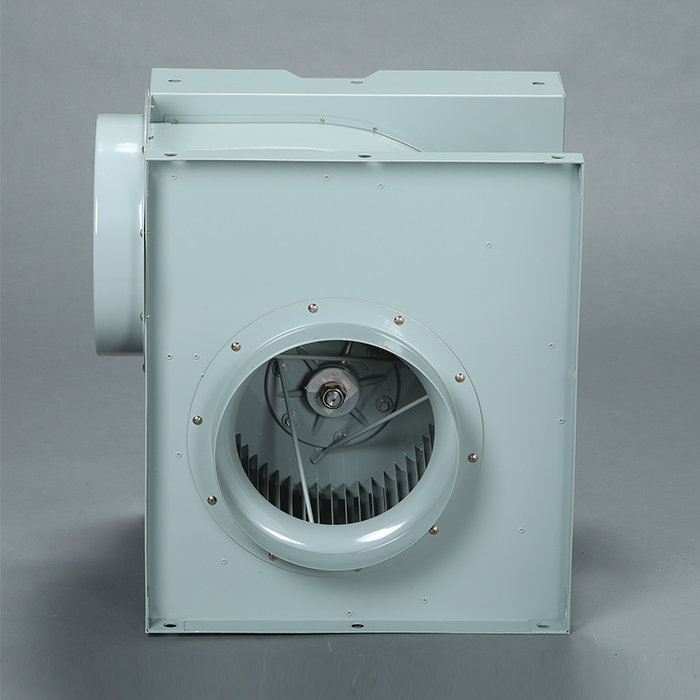

Large Sirocco Fan

• Minimized noise by application of low-noise type fan casing
• Ease of handling and installation through miniaturization and weight lightening by application of direct-coupled fan and motor
• Realization of flowrate and static pressure in high level compared to identical products
• Ease of inspection and maintenance by application of separable fan and motor in installed state
• Maximized heat release of motor by application of motor casing in aluminum alloy for die castings
• Available for manufacture of air intake in the opposite direction (blade in reverse)

※ SUS order production possible

• HVAC system (ventilation, air-conditioning, heated and cool air blowing, and air supply and exhaust system) for buildings, apartments, underground shopping centers, factories, warehouses, etc
• Assembly of various sorts of devices, and component cooling system : transformers, dryers, rectifiers, etc
