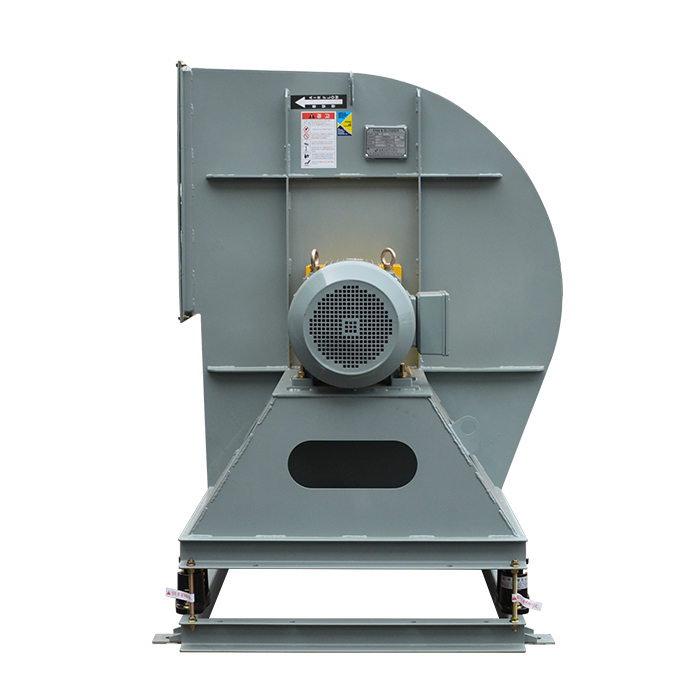

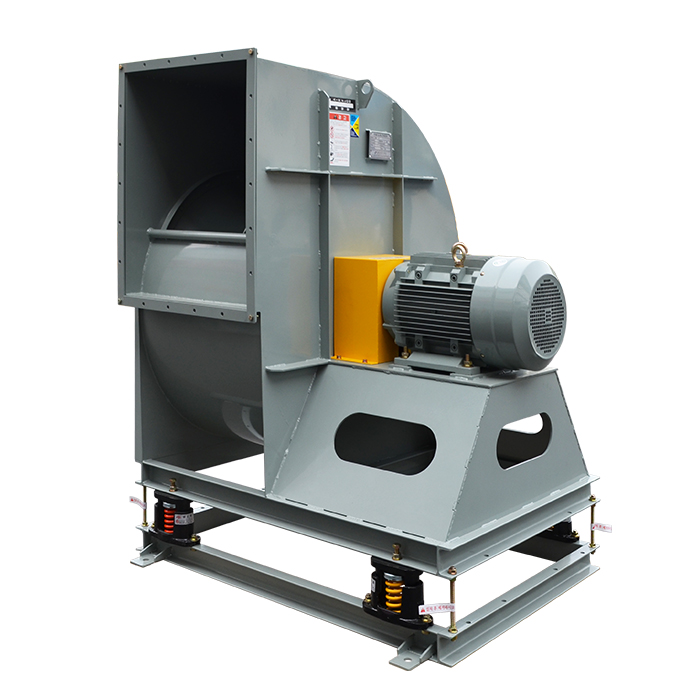

Easy Shaft Fan

Products

Easy Shaft Fan

Feature
  • Product size is smaller than the existing belt type
  • During A/S, parts can be replaced without whole disassembly work
  • Reduced consumable management cost as the number of consumables to be replaced is small compared to belt type
  • When using an inverter, it is possible to adjust the desired air volume and static pressure by RPM control.
Use
  • Press-fit boiler for transmission and exhaust of various buildings
  • Air purification device, drying device, etc.
  • Widely used for general industry
Specification
Model No. Impeller
size
(mm)		 Poles
(P)		 Input
(W)		 Air Volume(㎥/min) /Static Pressure(mmAq)
0
mm
Aq		 10
mm
Aq		 20
mm
Aq		 30
mm
Aq		 40
mm
Aq		 50
mm
Aq		 60
mm
Aq		 70
mm
Aq		 80
mm
Aq		 90
mm
Aq		 100
mm
Aq		 110
mm
Aq		 120
mm
Aq		 130
mm
Aq		 140
mm
Aq		 150
mm
Aq		 160
mm
Aq		 170
mm
Aq		 180
mm
Aq		 190
mm
Aq		 200
mm
Aq		 210
mm
Aq		 220
mm
Aq
DR-AF#2SE #2 4 0.4 30 25 20 15 10 0
DR-AF#2.5SE #2.5 1.5 57 52 47 43 38 34 26 0
DR-AF#3SE #3 2.2 118 112 107 95 90 85 80 70 65 60 0
DR-AF#3.5SE #3.5 3.7 186 180 175 170 155 145 140 130 125 120 110 105 95 0
DR-AF#4SE #4 7.5 278 270 265 260 253 235 220 210 205 198 190 183 175 168 160 150 115 0
DR-AF#4.5SE #4.5 11 406 400 392 385 380 370 350 330 318 310 300 292 285 275 265 255 243 230 220 205 190 170 0
