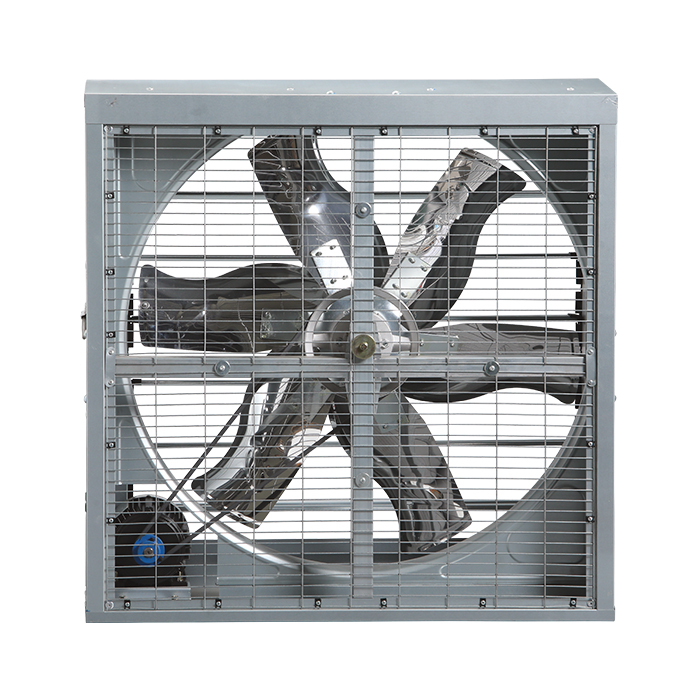

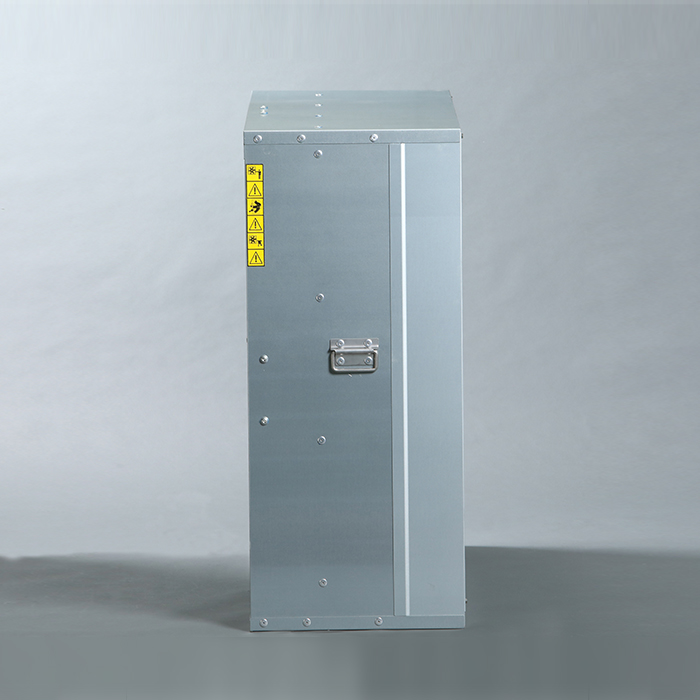

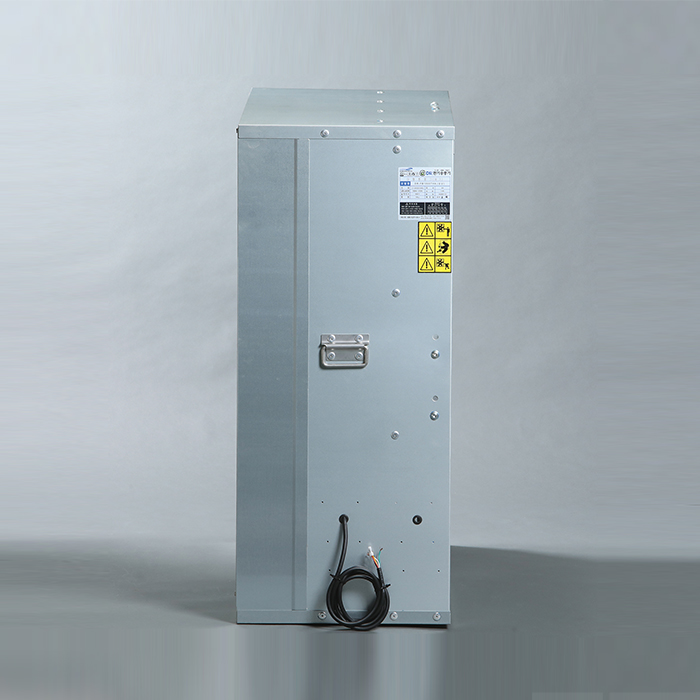

Slim Hanger Fan

Feature
  • Belt-drive type
  • Suitable for where high flowrate is required
  • Application of stainless-steel blades with low noise and high flowrate
  • Application of blades with self-cleaning function and enhanced efficiency

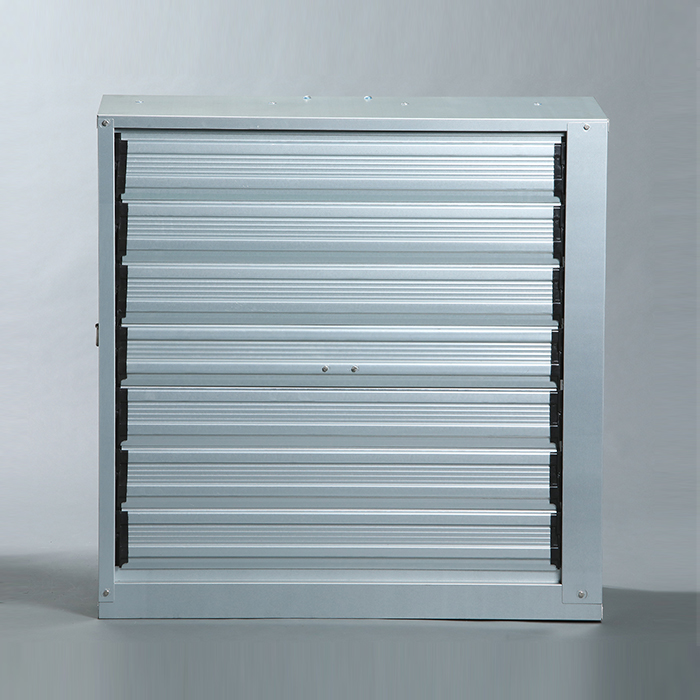

  • Application of switching device in shutter with centrifugal rotational force applied
  • Extended useable life, and less breakdown
  • Application of high-performance type motors, premium type motors
Use
  • Ventilation for injection-molding factories and greenhouses
  • Ventilation for farms where creation of pleasant environments is required
  • Air supply and exhaust, prevention of condensation in underground parking garages, and air supply and exhaust for gyms, auditoriums, and factories
User’s Guide
Specification
Model No. Impeller size
(mm)		 Max Air Volume
(㎥/h)		 Phase
(∮)		 Volt
(V)		 Poles
(P)		 RPM Input
(W)		 Power Consumption
(W)		 Weight
(kg)		 Plan
(PDF)		 Test Report
(PDF)
DR-FB1000TP 920 18,000 3 220/380 4 470 750 870 74
DR-FB1380TP 1250 35,000 470 1,500 1,150 100
44,000 550 1,715
